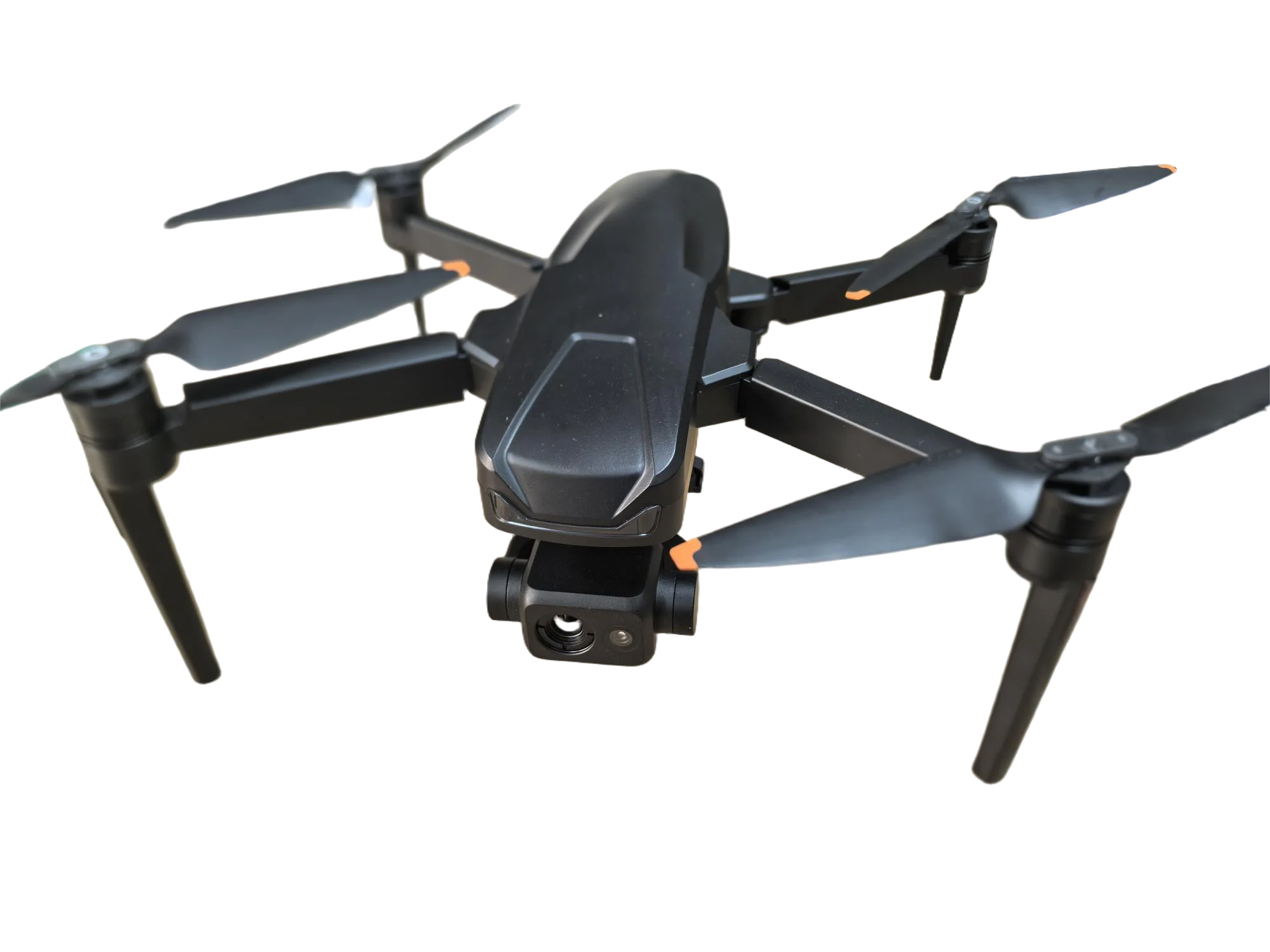

S800 FPV Drone

Max Speed
20 m/s
Max Altitude
5000m
Flight Time
38 min
Max Takeoff Weight
2050g
Professional drone platform with 4K camera, 10x optical zoom, and intelligent flight features.
S800 FPV Drone
Thumbnail 1
Thumbnail 2
Thumbnail 3

Aircraft Specifications

  • Weight (with battery and propellers): 1209g
  • Folded Size: 230×130×108mm
  • Unfolded Size: 457×558×108mm
  • Max Takeoff Weight: 2050g
  • Wheelbase: 397mm
  • Max Takeoff Altitude: 5000m
  • Max Ascent Speed: 8m/s
  • Max Descent Speed: 4m/s
  • Max Horizontal Speed: 20m/s
  • Max Tilt Angle: 35°
  • Max Wind Resistance: 12m/s
  • Max Hover Time: 33min
  • Max Flight Time: 38min
  • Positioning Mode: RTK or BeiDou
  • GNSS: GPS+Galileo+BeiDou+GLONASS
  • IP Rating: IP43
  • Operating Temperature: -10°C to 40°C
  • Intelligent Features: Smart Return, Waypoint Flight, 21T Computing Power
  • Data Security: AES Encryption

Wide-Angle Camera

  • Image Sensor: 1/2" CMOS, 48MP
  • Field of View: 84°
  • Equivalent Focal Length: 4.6mm
  • Aperture: f/2.8
  • Focus Range: 2m to ∞
  • ISO: 100-25600 (Manual)
  • Electronic Shutter: 8s-1/8000s
  • Max Photo Resolution: 8000×6000
  • Video: H.264, 4K@30fps, FHD@30fps
  • Photo Format: JPEG
  • Video Format: MP4

Telephoto Camera

  • Image Sensor: 1/2" CMOS, 48MP
  • Field of View: 40°-10.3°
  • Equivalent Focal Length: 11.8-43.3mm
  • Aperture: f/2.8-f/4.8
  • Focus Range: 2m to ∞
  • ISO: 100-6400
  • Shutter Speed: 8s-1/10000s
  • Max Photo Resolution: 8000×6000
  • Video: 7264×4086@15fps, 4K@30/60fps, FHD@30fps
  • Zoom: 2.7-10x Optical / 20x Hybrid

Gimbal

  • Stabilization: 3-axis Mechanical (Pitch, Roll, Yaw)
  • Max Control Speed (Pitch): ≥100°/s
  • Angular Vibration: ±0.007°

Perception System

  • Type: Six-direction Binocular Vision + Bottom Infrared Sensor
  • Effective Environment: Textured surfaces with adequate lighting (>15 lux)

Video Transmission

  • Max Range (unobstructed): FCC 10km / SRRC 8km / CE 8km
  • Antenna: Dual-transmit Quad-receive
  • Frequency: Dual-band 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
  • EIRP: <28dBm

Remote Controller

  • Screen: 7.9" 2048×1536, 2000nit brightness
  • Touch: Multi-touch
  • Battery: [email protected] Li-ion
  • Charging Time: 120 minutes
  • Ports: USB-A, Mini HDMI, Type-C, SIM, SD Card
  • Video Playback: 4K/60fps H.264/H.265
  • Storage: 4GB+64GB, supports 128GB expansion
  • Positioning: GPS+BeiDou
  • Size: 269×189×87mm (antenna folded)
  • Weight: 1194g (without case) / 1365g (with case)
  • Operating Temperature: -20°C to 40°C

Intelligent Flight Battery

  • Capacity: 5000mAh
  • Type: LiPo 4S
  • Energy: 77Wh
  • Charging Temperature: 5°C to 40°C
