Fpv 7 inch 4 axis traverser

Fpv 7 inch 4 axis traverser
Thumbnail 1
Thumbnail 2
Thumbnail 3
Maximum speed
150 km/h
Maximum flight range up to
8 km*
Flight time up to
29 min*
Warhead weight
2 kg

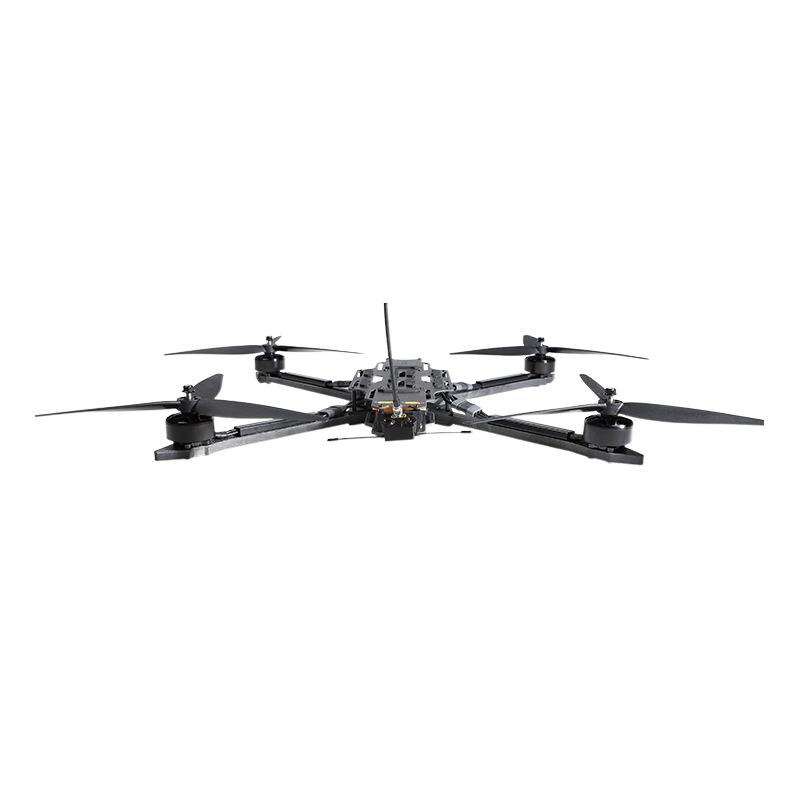

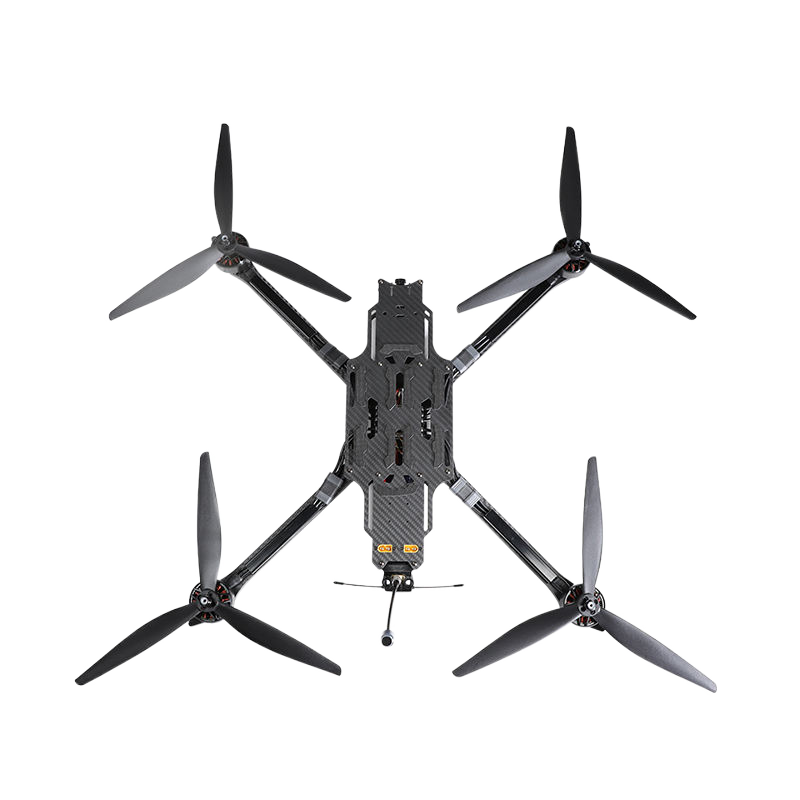

Compact and agile 7-inch FPV drone designed for precision operations.

Tactical and Technical Specifications

  1. Maximum speed: 150 km/h
  2. Rated Load: 1.5 kg
  3. Max Load: 2 kg
  4. VXT (Video Transmission): 8 km*
  5. Empty endurance: 29 min*
  6. Rated Load time: 14 min (6s 10000mah, 3.2 kg)
  7. Product size: 276×242×60 mm
  8. Wheelbase: 312 mm
  9. Arm Thickness: 6 mm
  10. Net Weight: 540 g
  11. Package: 300×282×65 mm
  12. Package weight: 850 g

*Depending on battery capacity, weather conditions, payload weight, and operator's control style.

Control and Video Transmission

  1. FPV Camera: 1800TVL 5-40V (Optional)
  2. Antenna: 5.8G Right-hand circular polarization SMA inner pin, length 150mm
  3. Receiver: ELRS915M

Drone Components

  1. Motor: 4× 2807 1350kv 6S
  2. Flight Control: F4 F405 (Supports firmware: BF/INAV)
  3. ESC: E601D 60A 8Bit 2-6S
  4. Propeller: 7040 3-blade (4 pcs)
  5. Recommended Lipo Battery: 6S 8000mah 50C XT60 (1kg)

Additional Info

Compact and agile 7-inch FPV drone optimized for precision operations with 6S battery configuration.
