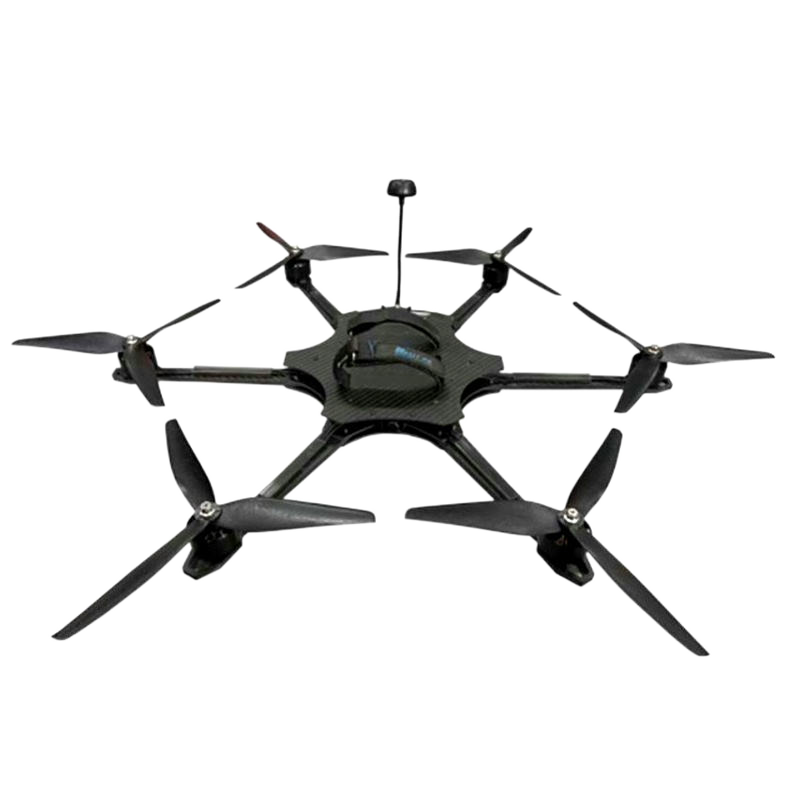

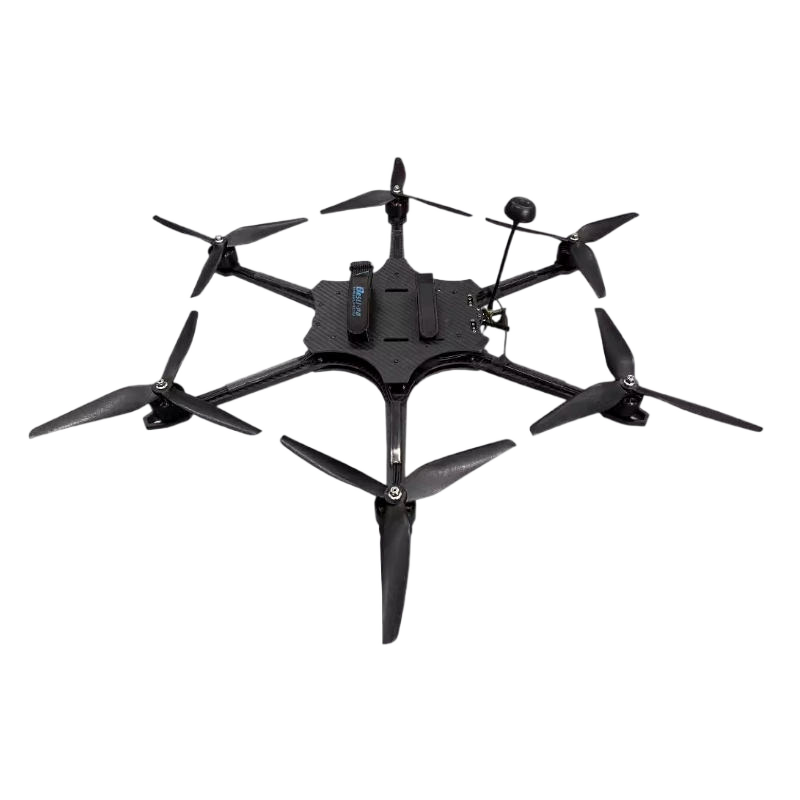

Fpv 15 inch 6 axis traverser

Fpv 15 inch 6 axis traverser
Thumbnail 1
Thumbnail 2
Thumbnail 3
Maximum speed
130 km/h
Maximum flight range up to
15 km*
Flight time up to
50 min*
Warhead weight
18 kg
Advanced 6-axis configuration provides superior stability and control for heavy payload missions.

Tactical and Technical Specifications

  1. Maximum speed: 130 km/h
  2. Rated Load: 15 kg
  3. Max Load: 18 kg
  4. VXT (Video Transmission): 15 km*
  5. Empty endurance: 50 min
  6. Rated Load time: 11 min (2×8s 16000mah, 13.5 kg)
  7. Product size: 827×827×80 mm
  8. Wheelbase: 780 mm
  9. Net Weight: 4280 g

*Depending on battery capacity, weather conditions, payload weight, and operator's control style.

Control and Video Transmission

  1. FPV Camera: 1800TVL 5-40V (Optional)
  2. Antenna: 5.8G Right-hand circular polarization SMA inner pin, length 150mm
  3. Receiver: ELRS915M

Drone Components

  1. Motor: 6× 5315 440kv 8S
  2. Flight Control: F405ICM8S
  3. ESC: 80A Single unit 3-8S
  4. Propeller: 1507 3-blade (6 pcs)

Additional Info

Advanced 6-axis configuration provides superior stability, redundancy, and control for heavy payload missions up to 18 kg.
