Fpv 13 inch 4 axis traverser

Fpv 13 inch 4 axis traverser
Thumbnail 1
Thumbnail 2
Thumbnail 3
Maximum speed
130 km/h
Maximum flight range up to
15 km*
Flight time up to
38 min*
Warhead weight
7 kg

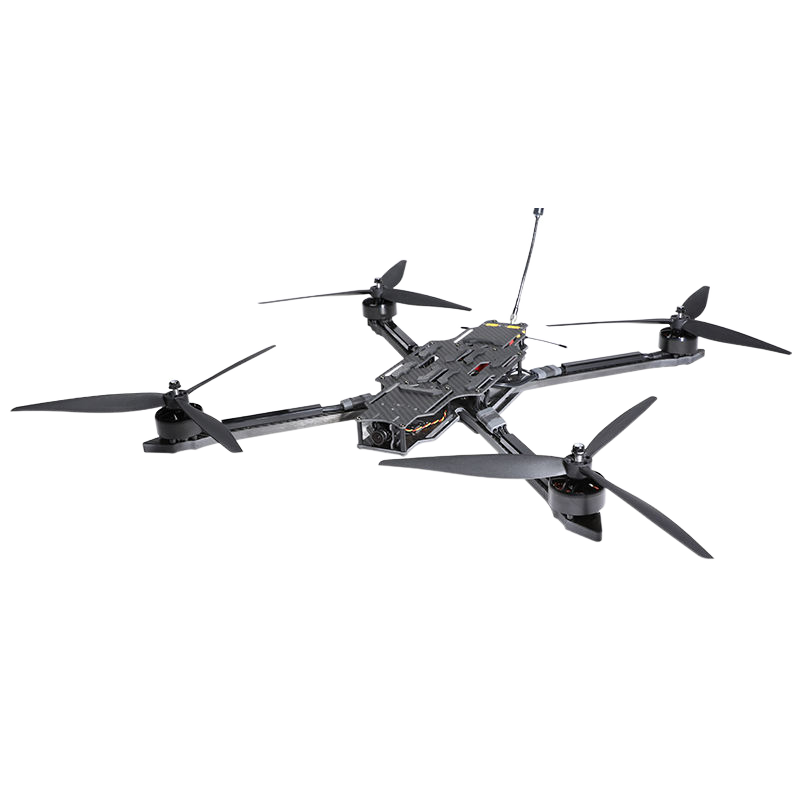

Heavy-duty 13-inch FPV drone designed for extended range and heavy payload operations.

Tactical and Technical Specifications

  1. Maximum speed: 130 km/h
  2. Rated Load: 6 kg
  3. Max Load: 7 kg
  4. VXT (Video Transmission): 15 km*
  5. Empty endurance: 38 min*
  6. Rated Load time: 11 mins (2×8s 8000mah, 10.9 kg)
  7. Product size: 489×489×80 mm
  8. Wheelbase: 600 mm
  9. Arm Thickness: 10 mm
  10. Net Weight: 1850 g
  11. Package: 560×560×90 mm
  12. Package weight: 2450 g

*Depending on battery capacity, weather conditions, payload weight, and operator's control style.

Control and Video Transmission

  1. FPV Camera: 1800TVL 5-40V (Optional)
  2. Antenna: 5.8G Right-hand circular polarization SMA inner pin, length 150mm
  3. Receiver: ELRS915M

Drone Components

  1. Motor: 4× 4214 440kv 8S
  2. Flight Control: F4 F405 (Supports firmware: BF/INAV)
  3. ESC: 80A V1 Single unit 3-8S
  4. Propeller: 1310 3-blade (4 pcs)
  5. Recommended Lipo Battery: 2×8S 8000mah 30C (2.04kg)

Additional Info

Heavy-duty 13-inch FPV drone designed for extended range and heavy payload operations with reinforced frame.
