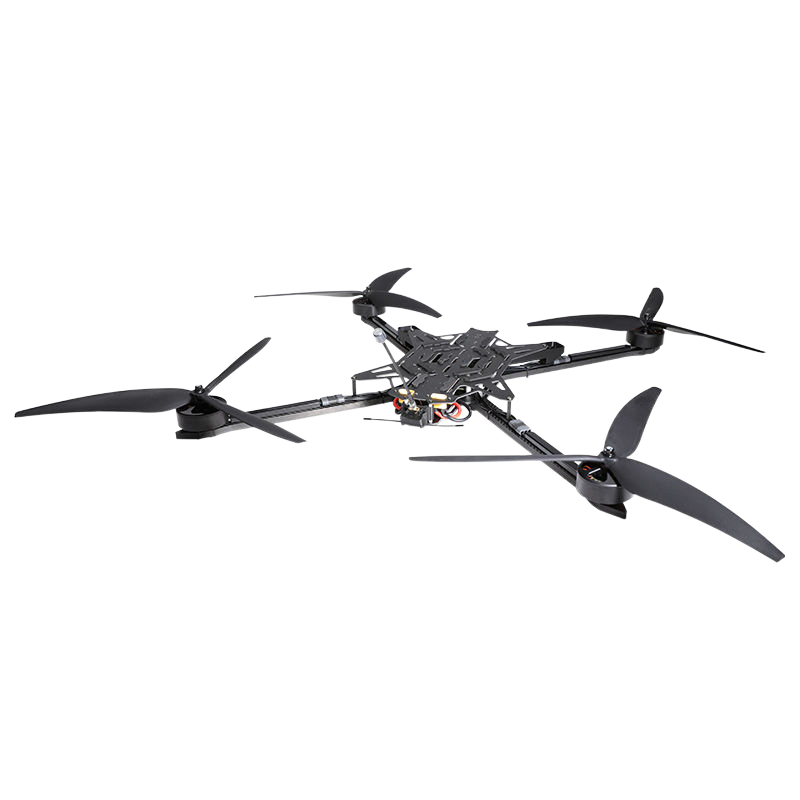

Fpv 10 inch 4 axis traverser

Fpv 10 inch 4 axis traverser
Thumbnail 1
Thumbnail 2
Thumbnail 3
Maximum speed
160 km/h
Maximum flight range up to
15 km*
Flight time up to
28 min*
Warhead weight
4 kg
The drone is equipped with a 6s3p or 6s4p battery and a payload release system.

Tactical and Technical Specifications

  1. Maximum speed: 160 km/h
  2. Rated Load: 3 kg
  3. Max Load: 4 kg
  4. VXT (Video Transmission): 15 km*
  5. Empty endurance: 28 min*
  6. Rated Load time: 10 min 20s (6s 10000mah, 5.2 kg)
  7. Product size: 344×294×60 mm
  8. Wheelbase: 396 mm
  9. Arm Thickness: 7 mm
  10. Net Weight: 793 g
  11. Package: 370×310×65 mm
  12. Package weight: 1120 g

*Depending on battery capacity, weather conditions, payload weight, and operator's control style.

Control and Video Transmission

  1. FPV Camera: 1800TVL 5-40V (Optional)
  2. Antenna: 5.8G Right-hand circular polarization SMA inner pin, length 150mm
  3. Receiver: ELRS915M

Drone Components

  1. Motor: 4× 3115 900kv 6S
  2. Flight Control: F4 F405 (Supports firmware: BF/INAV)
  3. ESC: E601D 60A 8Bit 2-6S
  4. Propeller: 1050 3-blade (4 pcs)
  5. Recommended Lipo Battery: 6S 10000mah 25C (1.35kg)

Additional Info

Versatile 10-inch FPV drone with extended range capabilities and payload release system.
