D2812-900KV

D2812-900KV
Thumbnail 1
Thumbnail 2
Thumbnail 3
Net weight
78g
Diameter * Length
Φ33×38
Stator size
Φ28×12
Spindle thread
M5

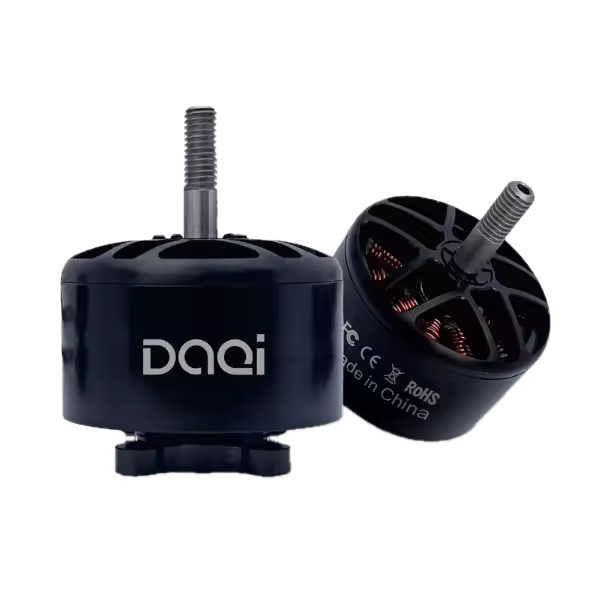

High-performance brushless motor designed for professional drone applications.

Technical Specifications

  1. Net weight: 78g
  2. Diameter * Length: Φ33×38
  3. Stator size: Φ28×12
  4. Spindle thread: M5
  5. Propeller mounting holes: 5mm
  6. Motor mounting holes: 19*19 4-M3
  7. Configuration: 12N14p
  8. Working voltage: 3s~6s / 12V~24V
  9. Rated current: 18A
  10. Max continuous current: 46A
  11. Max continuous power: 1127W
  12. Idle current: 0.9A
  13. Motor Efficiency: 90%
  14. No. of cells: 4s~6s Lipo
  15. Internal Resistance: 82
  16. Motor cable Length: 180

Additional Info

Professional-grade brushless motor with high efficiency and reliability, suitable for various drone configurations and applications.
