D2810-980KV

D2810-980KV
Thumbnail 1
Thumbnail 2
Thumbnail 3
Net weight
70g
Diameter * Length
Φ33×36
Stator size
Φ28×10
Spindle thread
M5

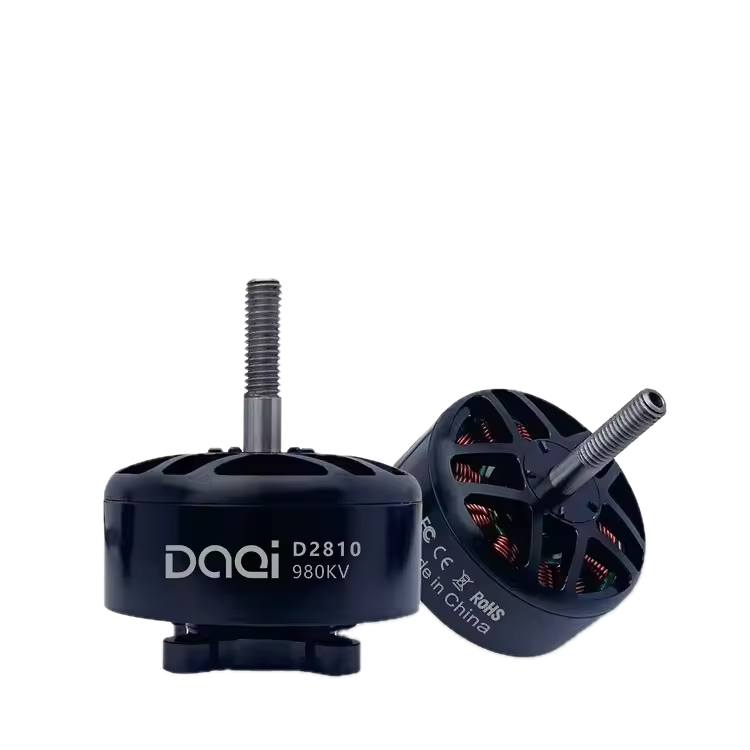

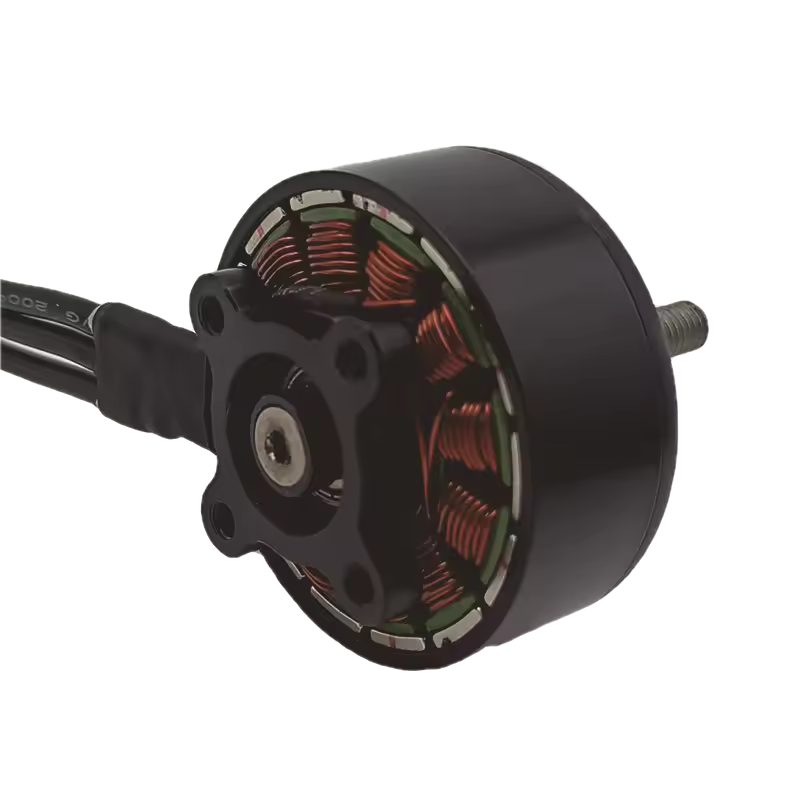

High-performance brushless motor designed for professional drone applications.

Technical Specifications

  1. Net weight: 70g
  2. Diameter * Length: Φ33×36
  3. Stator size: Φ28×10
  4. Spindle thread: M5
  5. Propeller mounting holes: 5mm
  6. Motor mounting holes: 19*19 4-M3
  7. Configuration: 12N14p
  8. Working voltage: 3s~6s / 12V~24V
  9. Rated current: 16A
  10. Max continuous current: 48A
  11. Max continuous power: 1110W
  12. Idle current: 0.9A
  13. Motor Efficiency: 90%
  14. No. of cells: 4s~6s Lipo
  15. Internal Resistance: 71
  16. Motor cable Length: 180

Additional Info

Professional-grade brushless motor with high efficiency and reliability, suitable for various drone configurations and applications.
