D2807-1350KV

D2807-1350KV
Thumbnail 1
Thumbnail 2
Thumbnail 3
Net weight
51.2 g
Diameter * Length
Φ33.7 × 39.2 mm
Stator size
28 × 6 mm
Spindle thread
M5

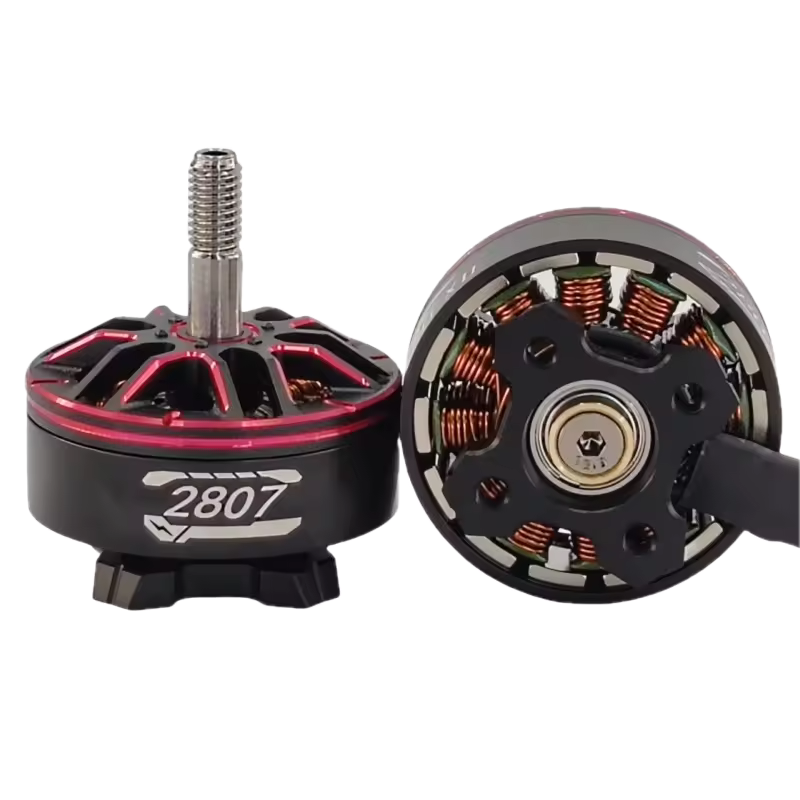

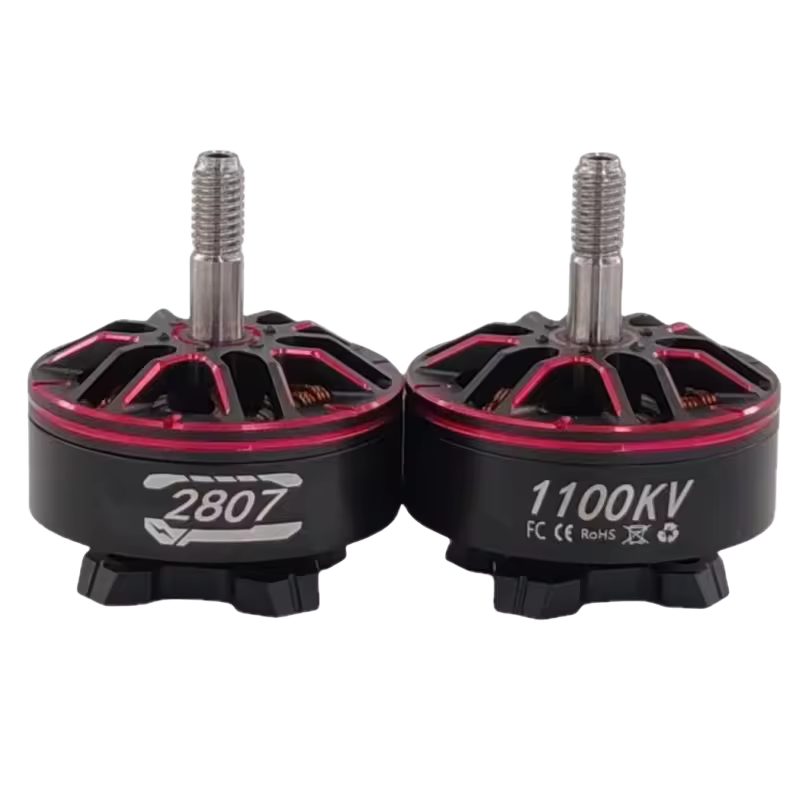

High-performance brushless motor designed for professional drone applications.

Technical Specifications

  1. Net weight: 51.2 g
  2. Diameter * Length: Φ33.7 × 39.2 mm
  3. Stator size: 28 × 6 mm
  4. Spindle thread: M5
  5. Propeller mounting holes: M5 thread，compatible with 5 inch propeller
  6. Motor mounting holes: 16 × 16 mm（M3）
  7. Configuration: 12N14P
  8. Working voltage: 6S
  9. Rated current: 39.18A
  10. Max continuous current: ≥ 40 A
  11. Max continuous power: 972.7 W
  12. Idle current: 1.2 A @10V
  13. Motor efficiency: ≈ 90%
  14. No. of cells: 6S
  15. Internal resistance: 83.17 mΩ
  16. Motor cable length: 180 mm

Additional Info

Professional-grade brushless motor with high efficiency and reliability, suitable for various drone configurations and applications.
