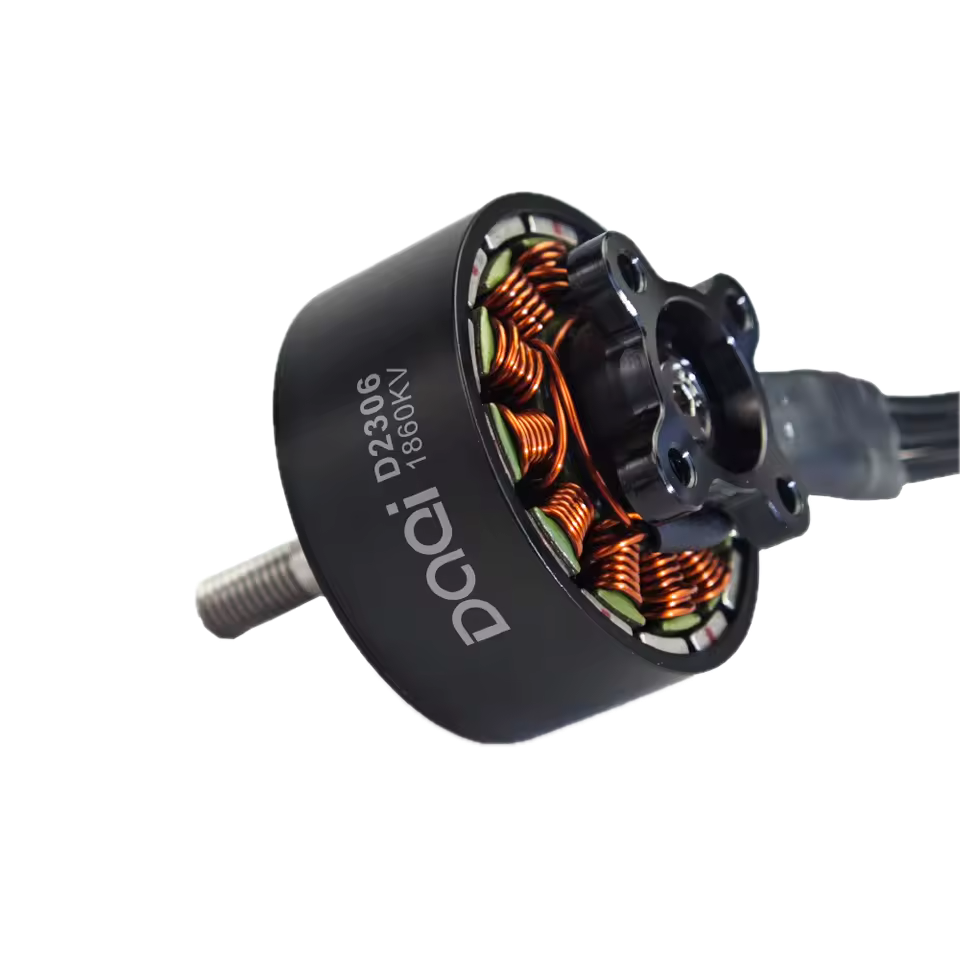

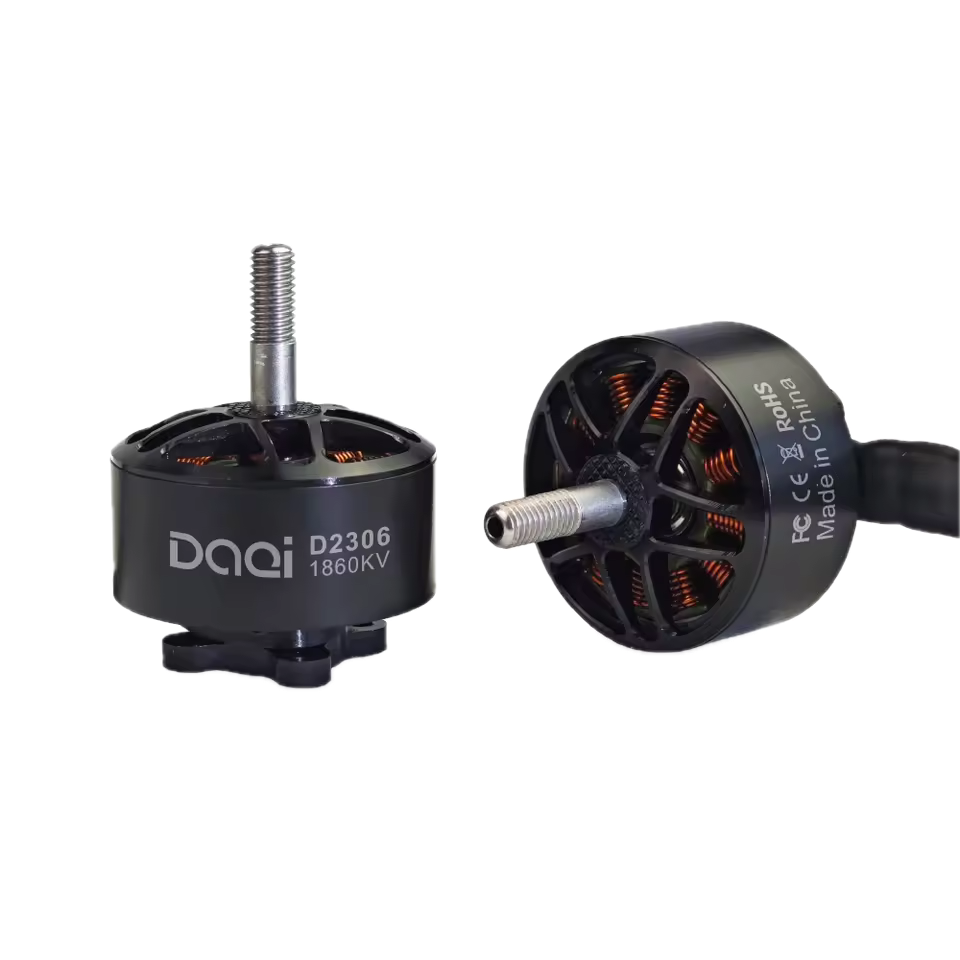

D2306-1860KV

D2306-1860KV
Thumbnail 1
Thumbnail 2
Thumbnail 3
Net weight
33.3 g
Diameter * Length
Φ29 × 18.6 mm
Stator size
23 × 6 mm
Spindle thread
M5
High-performance brushless motor designed for professional drone applications.

Technical Specifications

  1. Net weight: 33.3 g
  2. Diameter * Length: Φ29 × 18.6 mm
  3. Stator size: 23 × 6 mm
  4. Spindle thread: M5
  5. Propeller mounting holes: M5 thread，compatible with 5 inch propeller
  6. Motor mounting holes: 16 × 16 mm（M3）
  7. Configuration: 12N14P
  8. Working voltage: 6S
  9. Rated current: 39.18A
  10. Max continuous current: ≥ 40 A
  11. Max continuous power: 972.7 W
  12. Idle current: 1.2 A @10V
  13. Motor efficiency: ≈ 90%
  14. No. of cells: 6S
  15. Internal resistance: 83.17 mΩ
  16. Motor cable length: 180 mm

Additional Info

Professional-grade brushless motor with high efficiency and reliability, suitable for various drone configurations and applications.
